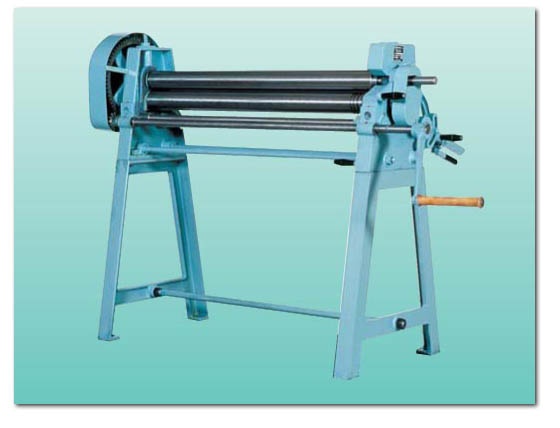

XZ 1000/2 - XZ 1000/3 - XZ 1300/1,2 - XZ 1300/2 - XZ 2000/1

Fulfilment:

• The machine is made from cast iron.

Technical specification:

Type XZ		1000/2	1000/3	1300/1,2
Working length of rolls	mm	1015	1015	1330
Max.thickness of used sheet at of 400 MPa	mm	2,0	3,0	1,2
Diameter of rolls	mm	75	90	75
Outside dimensions: lenght, width, height	mm	1730, 680, 1180	1820, 700, 1190	2030, 680, 1180
Weight	kg	250	330	300
Type XZ		1300/2	2000/1
Working length of rolls	mm	1330	2030
Max.thickness of used sheet at of 400 MPa	mm	2,0	1,0
Diameter of rolls	mm	90	90
Outside dimensions: lenght, width, height	mm	2120, 700, 1198	2730, 860, 1180
Weight	kg	400	510
