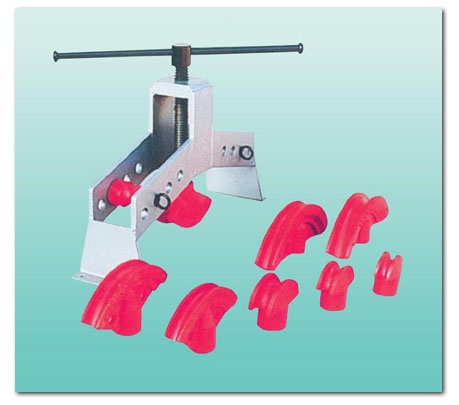

XOTR 29M- XOTR 35 M - XOTR 35MA
Fulfilment:
This bender is destinated for bending of tubes according ČSN 425710,3 425711 and 370035 of diameters:
- XOTR 29 M P13,5; P16; P21; P29
- XOTR 35 M 3/8"; 1/2"; 3/4"; 1"
- XOTR 35 MA P13,5÷P29; 3/8"÷1"
Technical specification:
| Type | XOTR 29 M | XOTR 35 M | XOTR 35 MA | |
| Angle of bend |  |
90 | 90 | 90 |
| Radius of bend | mm | 115 - 195 | 40 - 80 | 40 - 195 |
| Stroke of screw | mm | 187 | 187 | 187 |
| Weight | kg | 26 | 19 | 30 |
