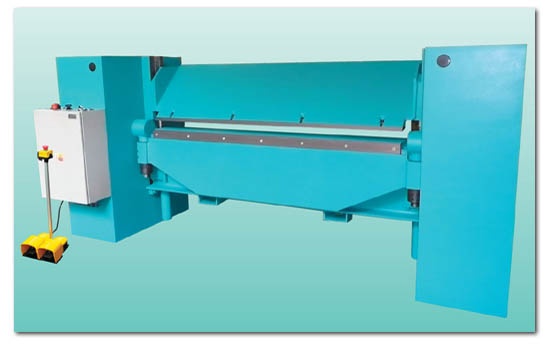

XOCR 1000/8 EK - XOCR 2000/6 EK - XOCR 2500/5 EK

Fulfilment:

• The machines is made from steel.

Special outfit:

• bending rulers according the wish
• split ruler

Optional machine versions:

• motor back stop bar with auto searching
• programmable control with motor back stop bar

Description:

The machine works in manual or automatic operation. In manual operation-fixing and bending is done by serviceman. In automatic operation-all operation done automaticly (bending and returning to basic position).

Setting of angle of bend is done simple-setting of angle on angle scale.

Technical specification:

Type XOCR		1000/8 EK	2000/6 EK	2500/5 EK
Working length	mm	1030	2030	2530
Max.thickness of used sheet at of 400 MPa	mm	8,0	6,0	5,0
Max. bend angle		135	135	135
Upper bar lift	mm	300	300	300
Bottom bar is adjusted able	mm	50	50	50
Power input of motor for lifting	W	2200	2200	2200
Power input of motor for bending	W	2x3000	2x3000	2x3000
Tension	V	400/230	400/230	400/230
Outside dimensions: lenght, width, height	mm	2530,1300,1600	3530,1300,1600	4030,1300,1600
Weight	kg	4000	5000	5500
