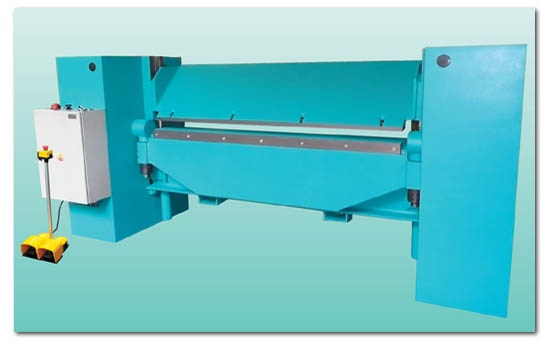

XOCR 1000/6 EK - XOCR 2000/4 EK - XOCR 2500/3 EK
Fulfilment:
- The machines is made from steel.
Special outfit:
- bending rulers according the wish
- split ruler
Optional machine versions:
- motor back stop bar with auto searching
- programmable control with motor back stop bar
Description:
The machine works in manual or automatic operation. In manual operation-fixing and bending is done by serviceman. In automatic operation-all operation done automaticly (bending and returning to basic position).
Setting of angle of bend is done simple-setting of angle on angle scale.
Technical specification:
| Type XOCR | 1000/6 EK | 2000/4 EK | 2500/3 EK | |
| Working length | mm | 1030 | 2030 | 2530 |
| Max.thickness of used sheet at of 400 MPa | mm | 6,0 | 4,0 | 3,0 |
| Max. bend angle |  |
135 | 135 | 135 |
| Upper bar lift | mm | 240 | 240 | 240 |
| Bottom bar is adjusted able | mm | 50 | 50 | 50 |
| Power input of motor for lifting | W | 2200 | 2200 | 2200 |
| Power input of motor for bending | W | 2x2200 | 2x2200 | 2x2200 |
| Tension | V | 400/230 | 400/230 | 400/230 |
| Outside dimensions: lenght, width, height | mm | 2330,1300,1500 | 3390,1300,1500 | 3890,1300,1500 |
| Weight | kg | 2400 | 3200 | 3900 |
